LokSound 5: Unleash Your Model Railroading Beast! DCC Sound Decoder - Power Up Your Trains!

Alright, buckle up buttercup, because you're about to witness the dawn of awesome. This ain't just some *thing*, it's a whole damn vibe. Imagine, a splash of pure, unadulterated *je ne sais quoi* meets a shot of adrenaline. It's got that "I woke up like this" effortless cool, mixed with a "ready to conquer the world" swagger. Seriously, you'll be turning heads, breaking hearts, and generally owning the room. Trust me, you need this. Get it, before it's gone and you're left with a deep, existential regret. You deserve this. Now go forth and be legendary.

$67.50 $134.99

num:

description

Details:

The LokSound 5 is the most important member of the LokSound family. Due to the combination of the digital decoder and the sound module on one circuit board we achieve the smallest possible dimensions of 30 mm x 15.5 mm. Therefore it fits into almost any H0 or 0 gauge locomotive.

LokSound 5 decoders are available with all popular interface types and are supplied with a sugar cube speaker (11 mm x 15 mm) and a sound enclosure.

The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 DCC decoder does not come with a speaker.

Operating Modes

Like all products of the LokSound family the LokSound 5 is a true multi protocol decoder. It supports DCC as well as Motorola, Selectrix and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus the decoders register themselves fully automatically on suitable command stations.

This decoder supports all DCC programming modes and thanks to RailCom you may read out the CV values on the main, provided you have a command station supporting RailCom. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255.

Motorola users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Central Unit 6021.

The M4 protocol supports the automatic registration on mfx compatible central units.

The LokSound 5 decoder supports the Märklin braking sections just as well as the ZIMO HLU braking commands or the Lenz ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations.

The LokSound 5 decoder is also suitable for analogue DC and AC (!) layouts.

Sound

The LokSound 5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity.

The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles.

Functions

We are quite aware that you want your locomotives to be as realistic as possible. Therefore we have packed many function outputs into it. Subject to the type of interface every LokSound 5 has at least 10 amplified outputs. The decoders with PluX22 or 21MTC interface have an additional 4 outputs for controlling servos or as logic outputs. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO and Krois as well as Telex couplers.

Motor Control

Motor control of the LokSound 5 has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 decoder supplies up to 1.5A motor current, which is quite sufficient even for older motor types.

LokSound 5 DCC

The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts.

Decoder Specifications:

Size: 30 mm x 15 mm x 6.5 mm (1.19 in x 0.59 in x 0.26 in)

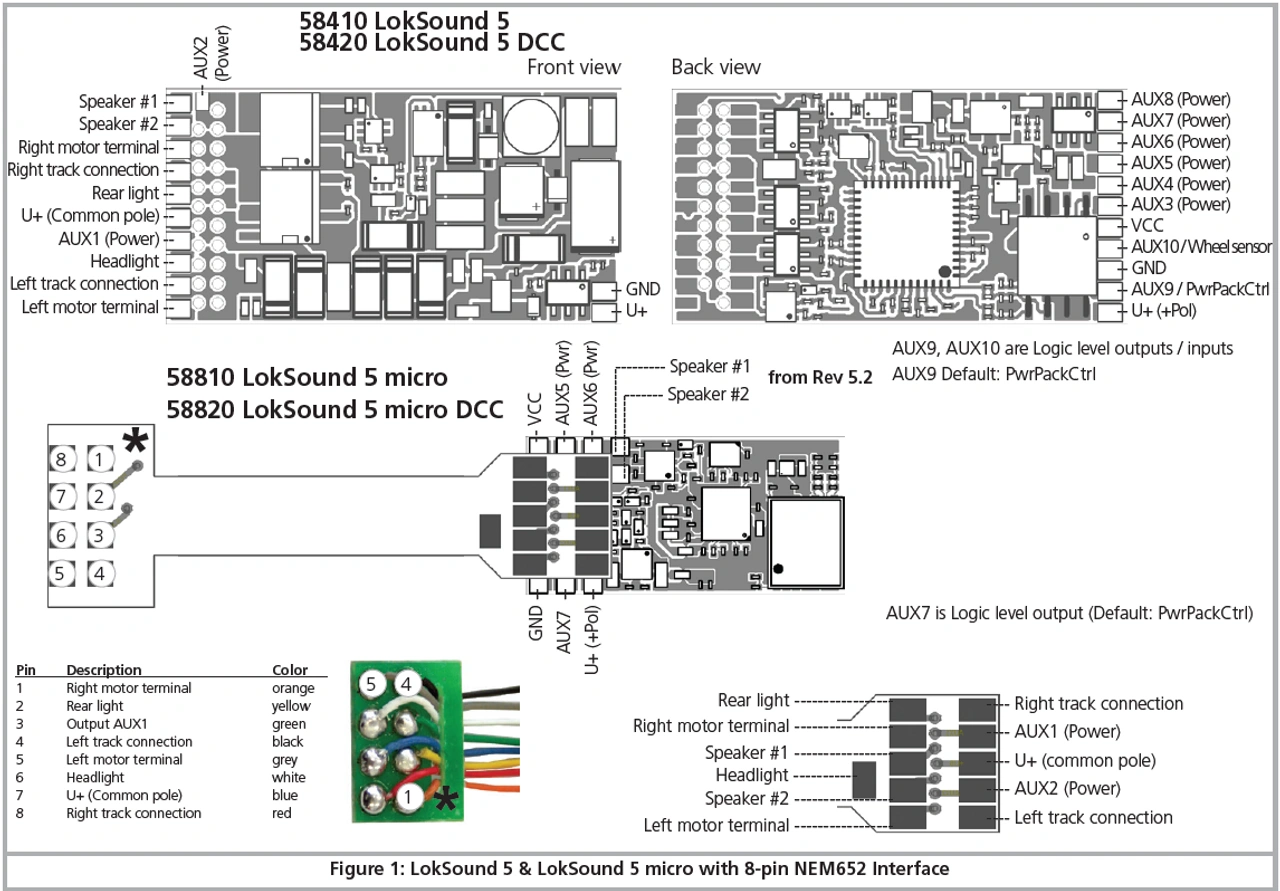

Interface: NEM652 8-pin Wired Plug
Motor Rating: 1.5 A Nominal
BEMF: Motor control with 50 kHz clock frequency
Functions: Up to 12 amplified outputs for special functions (total: Up to 15 outputs)

Sound:

32-bit processor
Digital class 'D' amplifier with up to 13 W power
10 sound channels can be played simultaneously
Each channel in 16-bit resolution and 31250 kHz sample rate
Nominal Speaker Impedance: 4 - 32 Ohm
Protocol: DCC with RailComPlus®, M4, Motorola® and Selectrix®
Additional Features:
Updatable with ESU-LokProgrammer
Two-stage heavy load simulation
3 new, individually adjustable brake controllers
Connection interface for RC servos and SUSI modules
Optional PowerPack storage capacitor connections
Includes 11x15 mm 'sugar cube' loudspeakers with customizable sound capsule set

Technical Specifications

Operation under DCC with RailComPlus, M4, Motorola and Selectrix
32 functions switchable (depending on the control panel)
32-bit processor
Digital class 'D' amplifier with up to 3 W power (LokSound 5 XL: 13 W)
10 sound channels can be played simultaneously
Each channel in 16-bit resolution and 31250 kHz sample rate
Noise memory with 128 Mbit capacity
Motor control with 50 kHz clock frequency
RC servos and Susi modules can be controlled
3 new, individually adjustable brake controllers
Two-stage heavy load simulation
Updateable with ESU-LokProgrammer

LokSound 5

Universal sound decoder for the gauge H0 and track 0
Motor current 1.5A
Depending on the interface up to 12 amplified function outputs for special functions (total: up to 15 outputs)
10 sound channels can be played simultaneously
Ex works with 11x15 mm 'sugar cube' loudspeakers with customizable sound capsule set
PowerPack storage capacitor optionally connectable
Dimensions: 30 mm x 15.5 mm, height depends on interface
